ERD

ERD (Entity Relationship Diagram)

An ERD serves as the fundamental blueprint when building a database,

defining the relationships between relations (tables).

• ERDs are created based on system requirements, and the database is built from this design.
• Even after the database is built, ERDs can serve as a reference for debugging or redesigning business processes.

However, while ERDs are useful for representing data in a relational structure,

they have limitations in fully representing unstructured data.

---

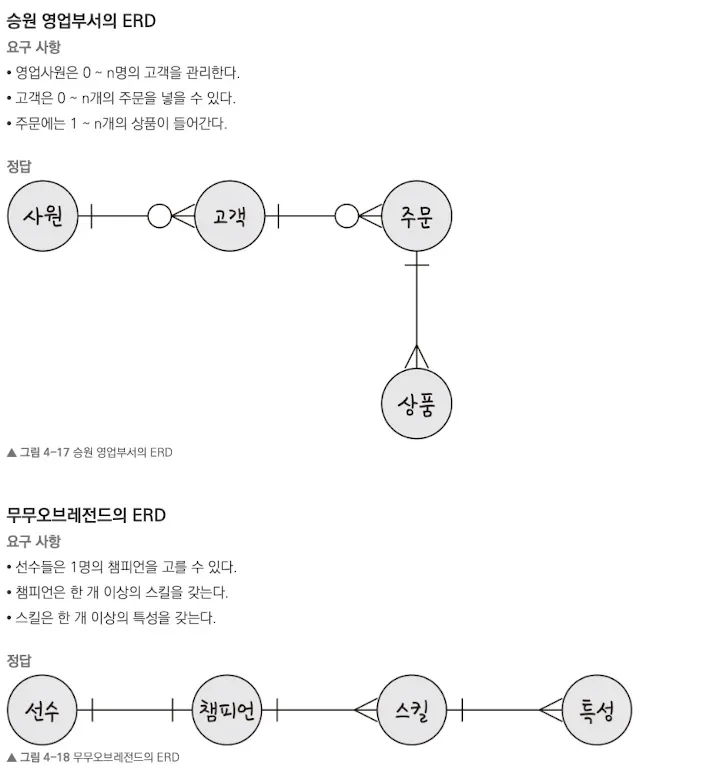

Example of an ERD
