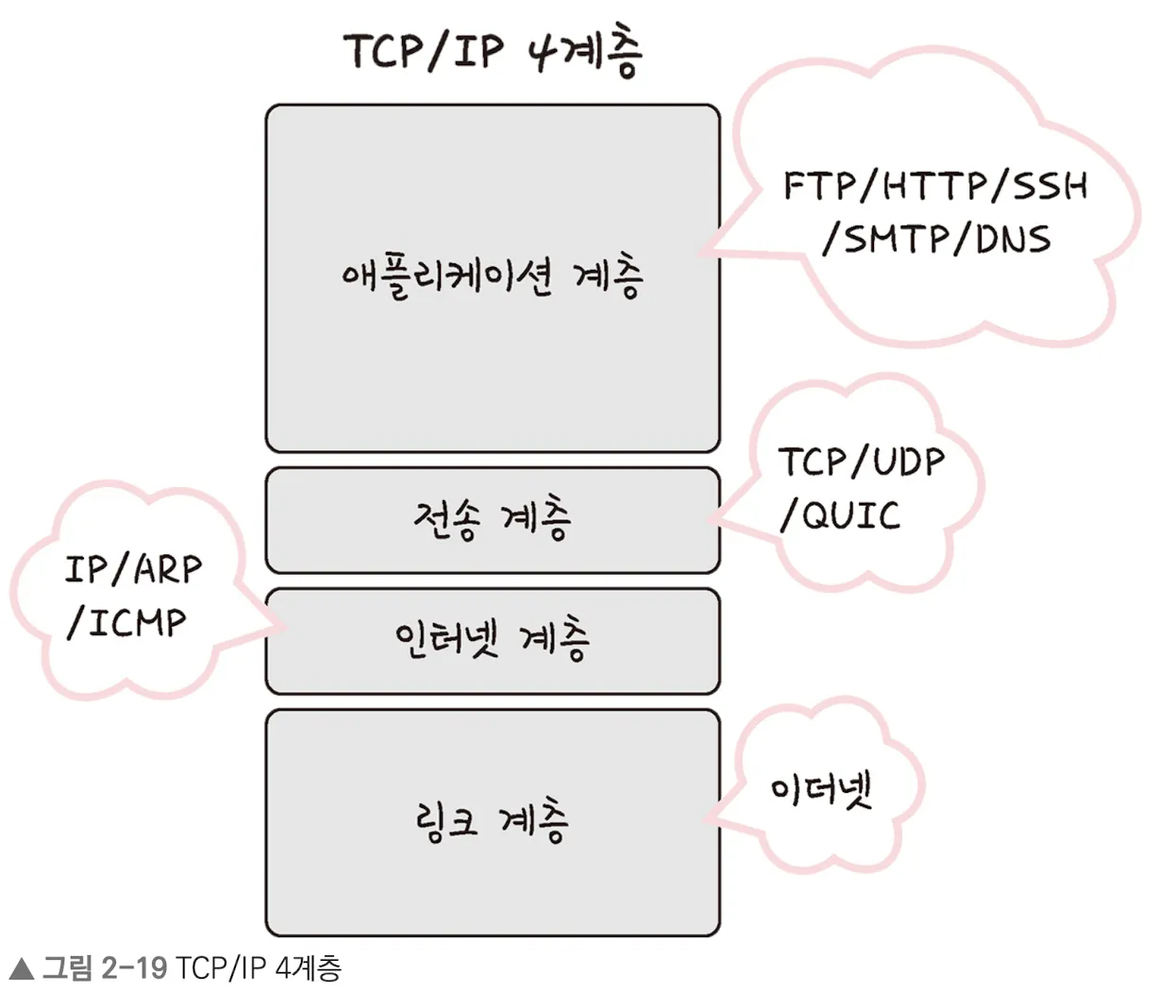

TCP/IP 4-layer model

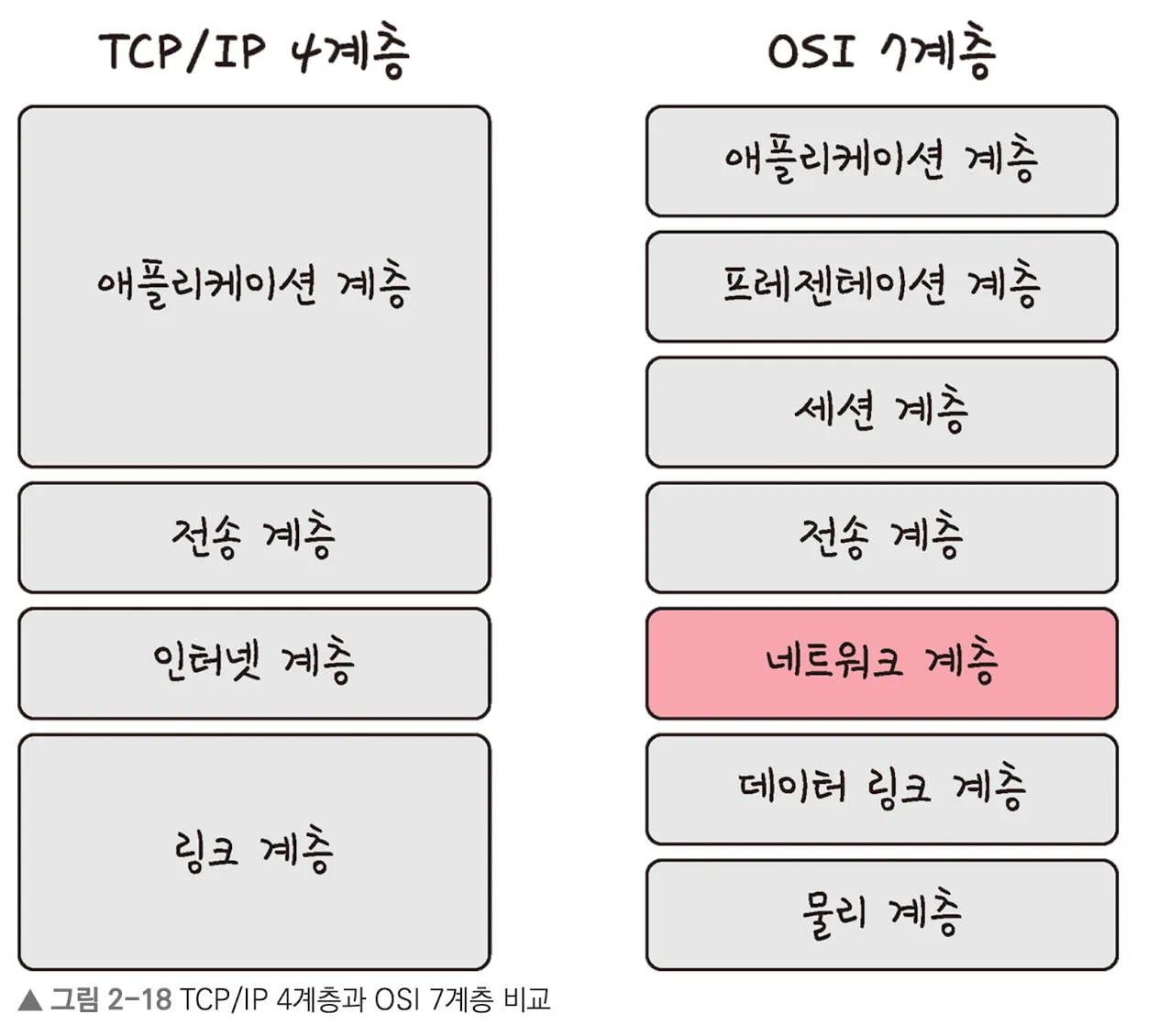

The Internet Protocol Suite is a collection of communication protocols used for exchanging information between computers over the Internet. It is commonly explained using either the TCP/IP 4-layer model or the OSI 7-layer model.



The TCP/IP model—short for Transmission Control Protocol / Internet Protocol—was designed with a focus on practicality and real-world applicability rather than theoretical completeness.





There are three key reasons why the TCP/IP model consists of four layers:

1. Simplicity and PracticalityCompared to the OSI model with its seven layers, the TCP/IP model was intentionally streamlined into four main layers to better fit actual networking needs.
2. During the early development of the Internet, the TCP/IP model was introduced to simplify complex network structures and to provide a standardized approach to communication.
3. Functional Layer SeparationFor example:
   •  The Transport Layer ensures reliable data delivery.
   •  The Internet Layer handles routing of packets across networks. This modularity allows each layer to be developed, modified, or optimized independently without affecting the others.
4. Each layer in the TCP/IP model is focused on a specific function, which enables modular system design.
5. Protocol-Centric DesignBecause of this foundation, it has become the de facto standard for modern Internet communication, widely adopted and used in real-world systems.
6. The TCP/IP model was built around the core protocols that power the Internet: TCP and IP.

In summary, the TCP/IP model reflects a practical, protocol-driven approach shaped by real-world requirements and historical context. It prioritizes effectiveness and interoperability over theoretical layering, which makes it more suitable for actual Internet implementations.







These layers are designed so that changes in one layer do not affect the others.

For example, switching from TCP to UDP at the transport layer does not require reinstalling the web browser.

This demonstrates the flexible and modular nature of the model.

---

Why TCP (Transmission Control Protocol) and IP (Internet Protocol) Are Considered Core Protocols in Networking

1. TCP (Transmission Control Protocol): Reliable Data Transmission
   •   Example: When downloading a file, TCP ensures the file is received completely and correctly. If any packets are lost during transmission, TCP will request them again to fill in the missing data.
2. TCP ensures the reliability and order of data delivery. It breaks the data into multiple packets, ensures that the receiver can reassemble them in the correct order, and retransmits any lost packets to maintain data integrity.
3. IP (Internet Protocol): Foundation of Data Routing
   •  Example: When visiting a website, IP determines the path for data to travel between your computer and the web server, enabling you to load the webpage.
4. IP is responsible for accurately delivering data packets to their destination. It uses IP addresses to route data across networks so that computers can communicate with each other.



Why TCP/IP Is Fundamental

•  IP decides where the data should go, while TCP ensures it gets there safely and correctly.
•  Together, they form the TCP/IP model, the standard protocol stack that underpins modern Internet communication. It enables reliable and efficient data transmission across diverse networking environments.
